12V High Torque Small Dc Motor , 2 Phase Linear Drive Motor 25BYT48-12Q

Name: 12V High Torque Small Dc Motor 2 Phase Linear Drive Motor 25BYT4812Q
Brand: VIC-TECH
Price: 10 USD

Brand Name : VIC-TECH

Model Number : 25BYT48-12Q

Certification : RoHS

Place of Origin : China

MOQ : 1Unit

Price : $10~$25/Unit

Payment Terms : Western Union, T/T, L/C, MoneyGram

Supply Ability : 1000000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Standard export package, or can be customized

Excitation : 2-2

Rated Voltage : 12V

Phase : 2

Step Angle : 7.5 degree

Step Per Revolution : 48

Current Per Phase : 0.143A

Holding Torque : 150g.cm

Life : 3000Hours Min （At 20℃ 100pps）

Contact Now

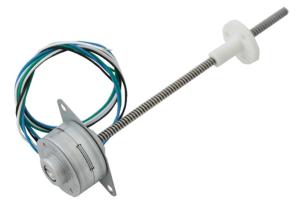

25BYT48-12Q micro linear stepper motor high torque 2 phase stepper motor with lead screw

12V High Torque Small Dc Motor , 2 Phase Linear Drive Motor 25BYT48-12Q

Mechanical Dimension:MM

12V High Torque Small Dc Motor , 2 Phase Linear Drive Motor 25BYT48-12Q

Technical Features

Typical Applications

Medical Equipment
Automatic Control
Precision Calibration
Precision Fluid Measurement
Precise Position Movement

Specifications

Product Name	25BYT48-12Q linear stepper motor
Model	25BYT48-12Q
Excitation	2-2
Rated Voltage	12V
Phase	2
Step Angle	7.5 degree
Resistance	84Ω±10%
Current Per Phase	0.143A
Travel Per Step Avail
Holding Torque	150g.cm
Inductance Per Phase	48±20% (mH) At 1KHz(Ref)
After All Journey	98mm
Life	3000h MIN At 20℃ 100pps
Operating Temp Range	-10℃~40℃
Storage Temp Range	-30℃~80℃
Insulation Class	class E
Insulation Resistance	＞100MΩ MIN At DC 500V
lead wrie	UL1061 28#
Weight	42g
OEM & ODM Srvice	Available

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

12V High Torque Small Dc Motor , 2 Phase Linear Drive Motor 25BYT48-12Q
