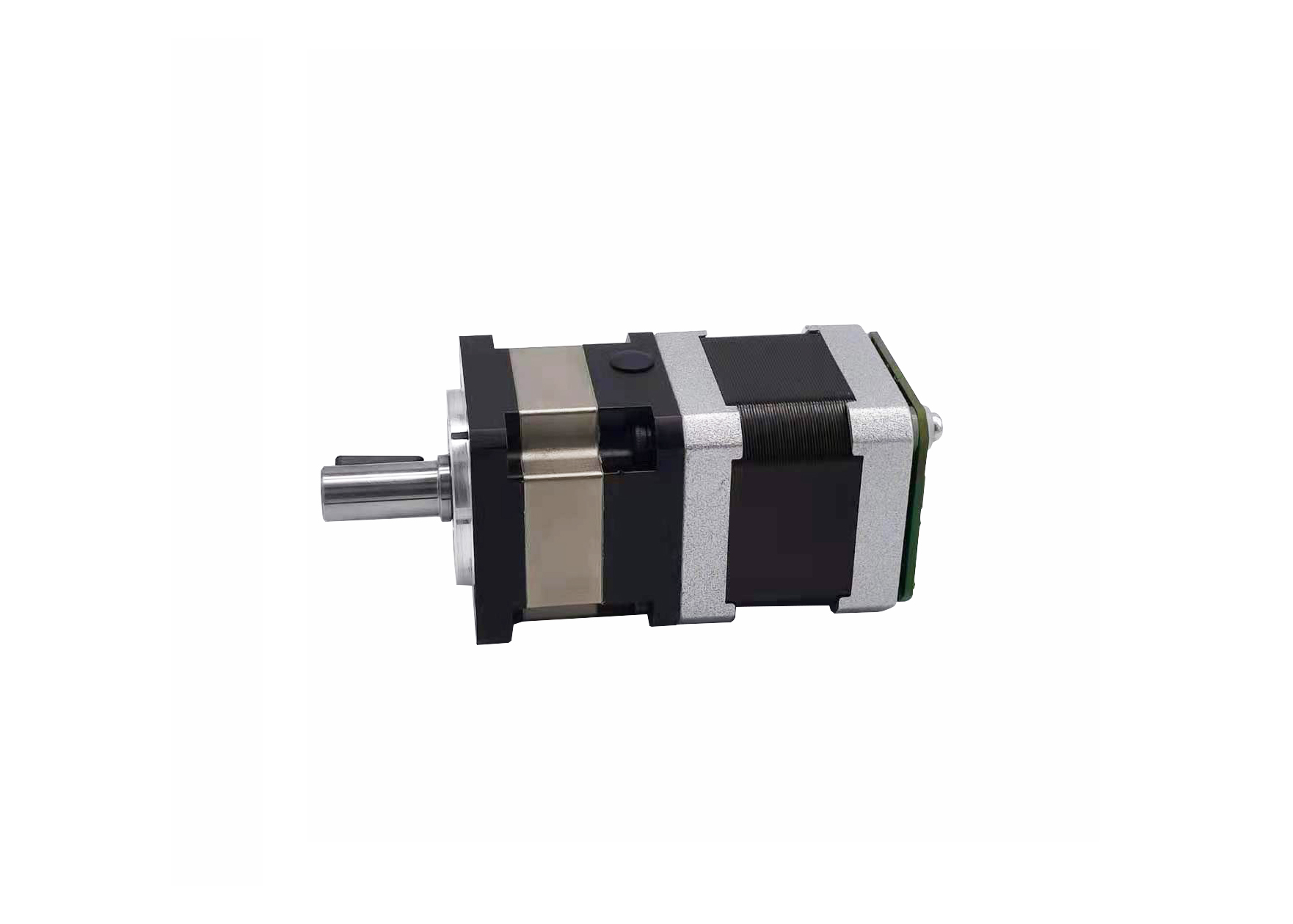

High Precision Hybrid Stepping Motor Nema 17 programmable stepper motorh With Gearbox

Brand Name : VIC-TECH

Model Number : 42BYG-42PLF -XXG

Certification : RoSH

Place of Origin : Jiangsu,China(mainland)

MOQ : 1 Unit

Price : $30-49/Unit

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 1000000 units per year

Delivery Time : 15-30 work days

Packaging Details : Standard export package, or can be customized

Model No. : 42BYG-42PLF -XXG

Motor length L1 optional（Different lengths will have different currents and torques） : 25 28 34 40 48 52 60

Motor current range : 0.4~1.7A

Torque range : 1.8~7.0 kg.cm

Step angle : Two options of 0.9° and 1.8°

Gear ratio : 49:1

Holding Torque : 4 5 7 10 16 20 25 28 35 40 50 79

Contact Now

42BYG-42PLF -XXG Hybrid stepping motor with high precision 42mm diameter, small backlash and high torque with gearbox

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!


High Precision Hybrid Stepping Motor Nema 17 programmable stepper motorh With Gearbox

Mechanical Dimension:MM


High Precision Hybrid Stepping Motor Nema 17 programmable stepper motorh With Gearbox

Model No.

42BYG-42PLF -XXG

Motor length L1 optional(Different lengths will have different currents and torques)

25 28 34 40 48 52 60

Motor current range

0.4~1.7A

Torque range

1.8~7.0 kg.cm

Step angle

Two options of 0.9° and 1.8°

Gear ratio

4 5 7 10 16 20 25 28 35 40 50 79


​Textile EquipmentTypical Applications

  • Automatic Control
  • Packing Machine
  • Engineering Vehicle
  • 3D Printer
  • New Energy
  • Gate Openers
  • Vending Machine
  • Conveyor System
  • Medical Equipment
  • Fluid Control
  • OA Financial Equipment


Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and adequate inventory.

  • Near Shanghai port, the traffice is very convenient.

Product Detail Presentation


High Precision Hybrid Stepping Motor Nema 17 programmable stepper motorh With GearboxHigh Precision Hybrid Stepping Motor Nema 17 programmable stepper motorh With Gearbox
